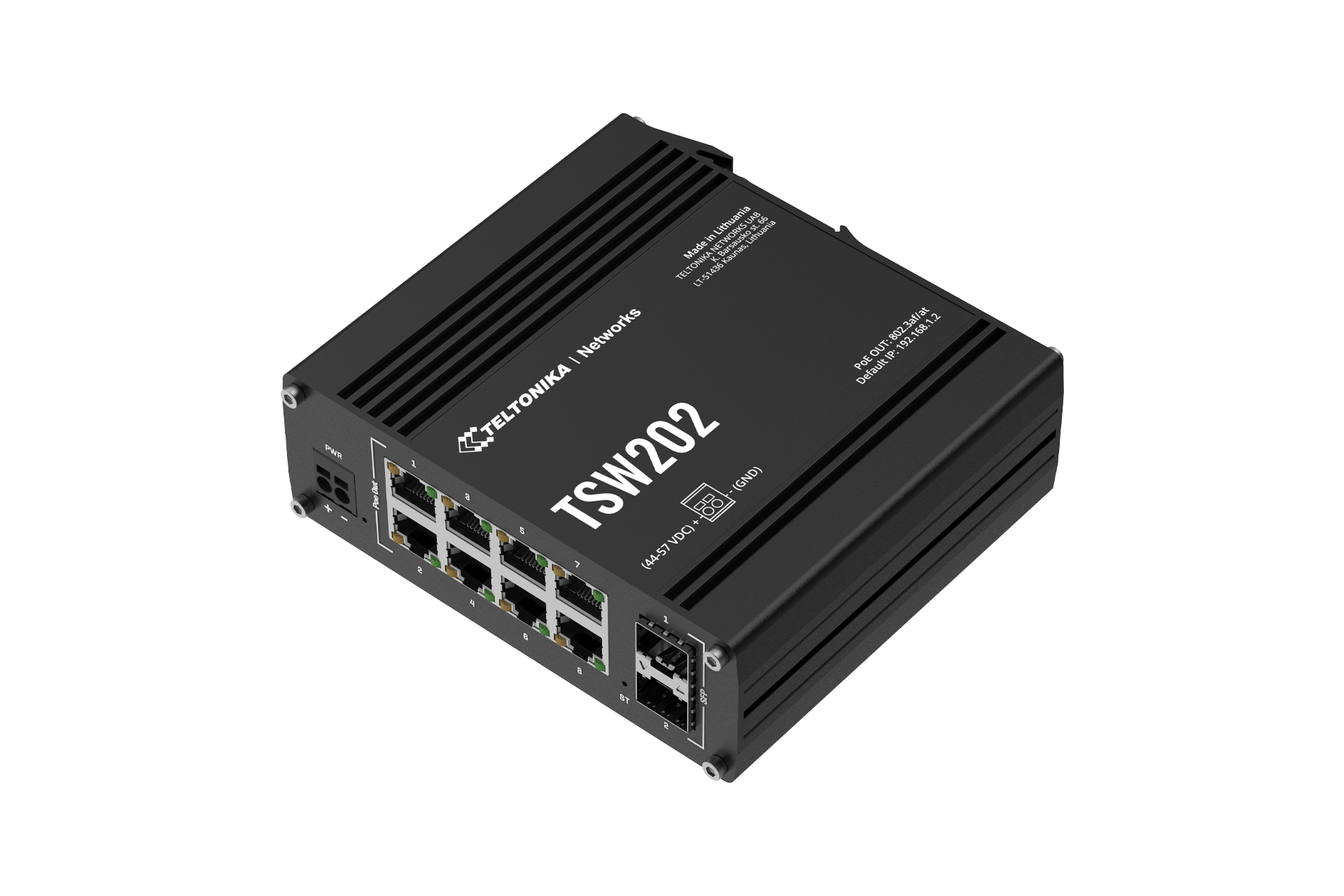

TSW202
Overview
TSW202 is a managed PoE+ Ethernet switch, designed to provide granular network management capabilities while centralising power distribution. This PoE+ switch enables flexibility over management and power supply and supports protocols, including EtherNet/IP, PROFINET, and MRP. The TSW202 has 2 SFP ports and 8 Gigabit Ethernet ports providing 30 W of power each.
MANAGED SWITCH
L2 with additional L3 features for enhanced management and control.
PoE+ & SFP
8 x port PoE+ switch with 2 x SFP ports for fiber optic communication.
PROFINET & MORE
Supports PROFINET for automated data processing alongside other protocols, like EtherNet/IP and MRP.
TSWOS
Teltonika Networks OS for switches, intuitively designed for infinite configurations.
| Industrial switch | |
|---|---|
| Profinet | Profinet Class B conformance (available with optional order code) |
| ETH | Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover |
| Fibre | 2 x SFP ports |
| IEEE 802.3 series standards | 802.3i, 802.3u, 802.3ab, 802.3x, 802.3az |
| MRP | MRP client role, MRP manager role |
| L2 features | Loop protection, Forwarding table, VLAN, STP/RSTP |
| DHCP | DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards |
| Port Settings | Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring |
| L3 Features | Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address |
| QOS | Port priority, DSCP priority, 802.1p priority, TOS |
| PoE+ ports | Port 1 - 8 |
| PoE standards | IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (Batch 15 and all batches from Batch 17 onward) IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (Batches 1–14 and Batch 16) |
| PoE Max Power per Port (at PSE) | 30 W |
| Total PoE Power Budget (at PSE) | 240 W |
| Bandwidth (Non-blocking) | 20 Gbps |
| Forwarding rate | 14.88 Mpps |
| Jumbo frame support | 10000 bytes |
| MAC address table size | 8K entries |
