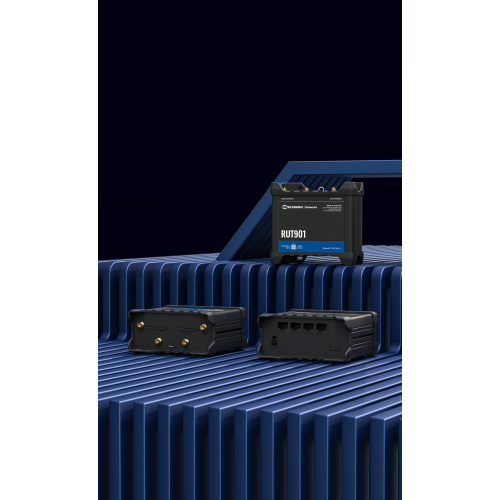

RUT901
The RUT901 cellular router delivers the top-rated features of its predecessors, the RUT950 and RUT951, to the market. The device ensures high-performance, providing automatic WAN failover to an available backup connection, guaranteeing network continuity and eliminating downtime
CONNECTIVITY
4G LTE (Cat 4), 3G, 2
DUAL SIM
With auto failover, backup WAN and other switching scenarios
WI-FI
Wireless Access Point with Hotspot functionality
PROTOCOLS
Multiple protocols supported including MQTT, Modbus TCP, DNP3
| Mobile | 4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 21 Mbps, 2G – Up to 236.8 kbps |
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
| Storage | 16 MB, SPI Flash |
| Memory | 128 MB, DDR2 |
| Powering option | 4-pin power socket, 9-30 VDC |
| SIM | 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional) |
| Antenna connectors | 2 x SMA female for LTE, 2 x RP-SMA female for WiFi antenna connectors |
| Ethernet | 4 x RJ45 ports, 10/100 Mbps |
| Wi-Fi | IEEE 802.11b/g/n, Access Point (AP), Station (STA) |
| Inputs/Outputs | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |
| Status LEDs | 1 x bi-color connection status LED, 5 x connection strength LEDs, 4 x LAN status LEDs, 1 x Power LED |
| Operating temperature | -40 °C to -75 °C |
| Housing | Aluminium housing, plastic panels |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Mobile features | SIM switch, Status, SMS, Black/White list, Band management, APN, Bridge, Passthrough |
| Network protocols | VoIP passthrough support, Connection monitoring, Firewall, DHCP, QoS / Smart Queue Management (SQM), DDNS, Network backup, Load balancing, SSHFS |
| Network features | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
| Security | Authentication, Firewall, Attack prevention, VLAN, Mobile quota control, WEB filter, Access control |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, NHRP) |
| VPN | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, ZeroTier, WireGuard |
| Monitoring and management | WEB UI, FOTA, SSH, SMS, Call, TR-069, MQTT, SNMP, JSON-RPC, MODBUS, RMS |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Cloud solutions | RMS, Cloud of Things, ThingWorx, Cumulocity, Azure IoT Hub |
| SMS features | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
