Brand: QNAP
Product Code: TS-873A + QSW-1105-5T Bundle Pack
Availability: 10

TS-873A 8-Bay AMD Ryzen Quad-Core 2.5GbE NAS with QSW-1105-5T 5-Port 2.5GbE Unmanaged Switch

Call for Price:
- +



Bye-bye Gigabit, hello 2.5GbE.

Gigabit Ethernet isn’t fast enough to unleash your 2.5G LAN and WAN devices. Upgrade to a 2.5G switch now!





ISPs offer Multi-Gig internet for homes

Many ISPs have started delivering multi-gigabit fiber to the home (FTTH) customers, providing speeds exceeding that of standard gigabit ethernet.





Multi-Gig enables Wi-Fi 6

Wi-Fi 6 (802.11ax) routers or APs require multi-gig network devices to unleash optimal wireless performance.





PC / laptops adopt 2.5G ports

Modern PCs and laptops have adopted 2.5G ports to fulfill high-bandwidth demands of streaming, video calls, gaming, and other modern web services.





Make your work and life smooth with the high-speed Switch and NAS

QNAP helps you upgrade to a high-speed network and data storage center in your home or office, providing a full 2.5G network experience.





switch 2.5g ts 873a





Flash sale! QNAP’s most cost-effective 2.5GbE solution





Why 2.5G? Cost-effective high-speed option.
If you can’t budget a 10GbE upgrade at this time, the more affordable 2.5GbE provides a notable improvement in current Ethernet speeds. Use existing CAT5e cables to upgrade 2.5GbE network without stretching your budget.





Why QNAP 2.5G solution? More cost-effective solution.
The lack of consumer-grade switches has made it hard for home and personal users to adopt 2.5GbE/5GbE networking. QNAP now offers cost-effective 2.5GbE switches, helping you to transform your home network at a wallet-friendly price.





Why now? The most cost-effective timing.
QNAP now hosts a flash sale for the 2.5GbE NAS and Switch Bundle. Buy now!





Limited-time offer for bundle discounts!
Experience 2.5GbE network now.





TS-873A
AMD Ryzen™ Quad-core multi-tasking 2.5GbE NAS

TS-873A not only provides a secure and reliable storage solution for backing up all your files, but also supports running multiple VMs and containers for diverse applications.





Two 2.5GbE ports can be combined for bandwidth for up to 5Gbps!



Multi-tasking AMD Ryzen™ 4-core/8-thread 2.2 GHz processor



8GB RAM, supports up to 64GB RAM (ECC memory also supported)



Add more 2.5G/10G ports via PCIe network cards



Supports entry-level graphics cards to boost performance for video transcoding or VM output



Install two M.2 NVMe SSD (sold separately) for faster data accessing or image recognition



Three USB 3.2 Gen 2 (10Gbps) ports and one USB 3.2 Gen 1 (5Gbps) port allow faster backup to/from USB devices



Add an additional twenty-four hard drives by connecting to multiple storage expansion units





Smart storage • Simple backup • Easy management

TS-873A helps you easily back up, search, share and manage all your files and data. Super!



Storage protection

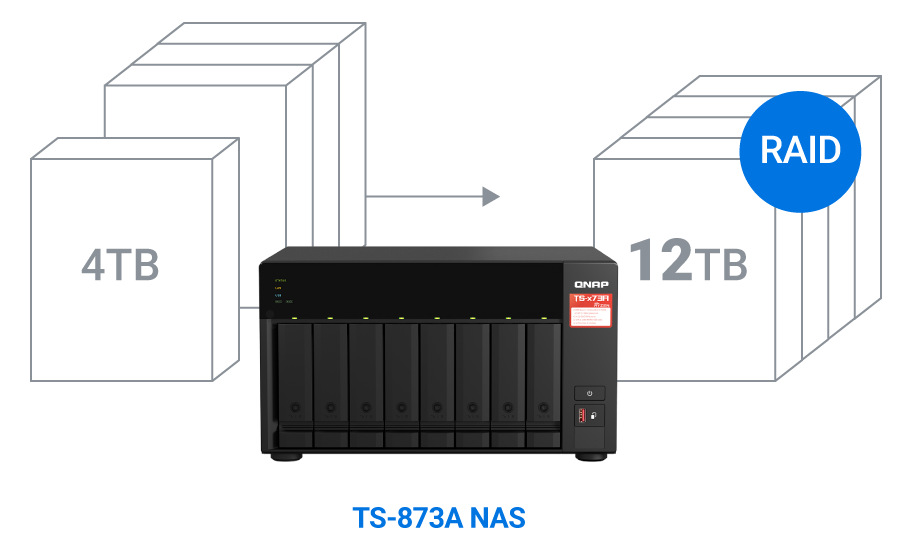

RAID protection

QNAP NAS supports various RAID types that provide varying levels of performance and data redundancy.



raid ts 873a

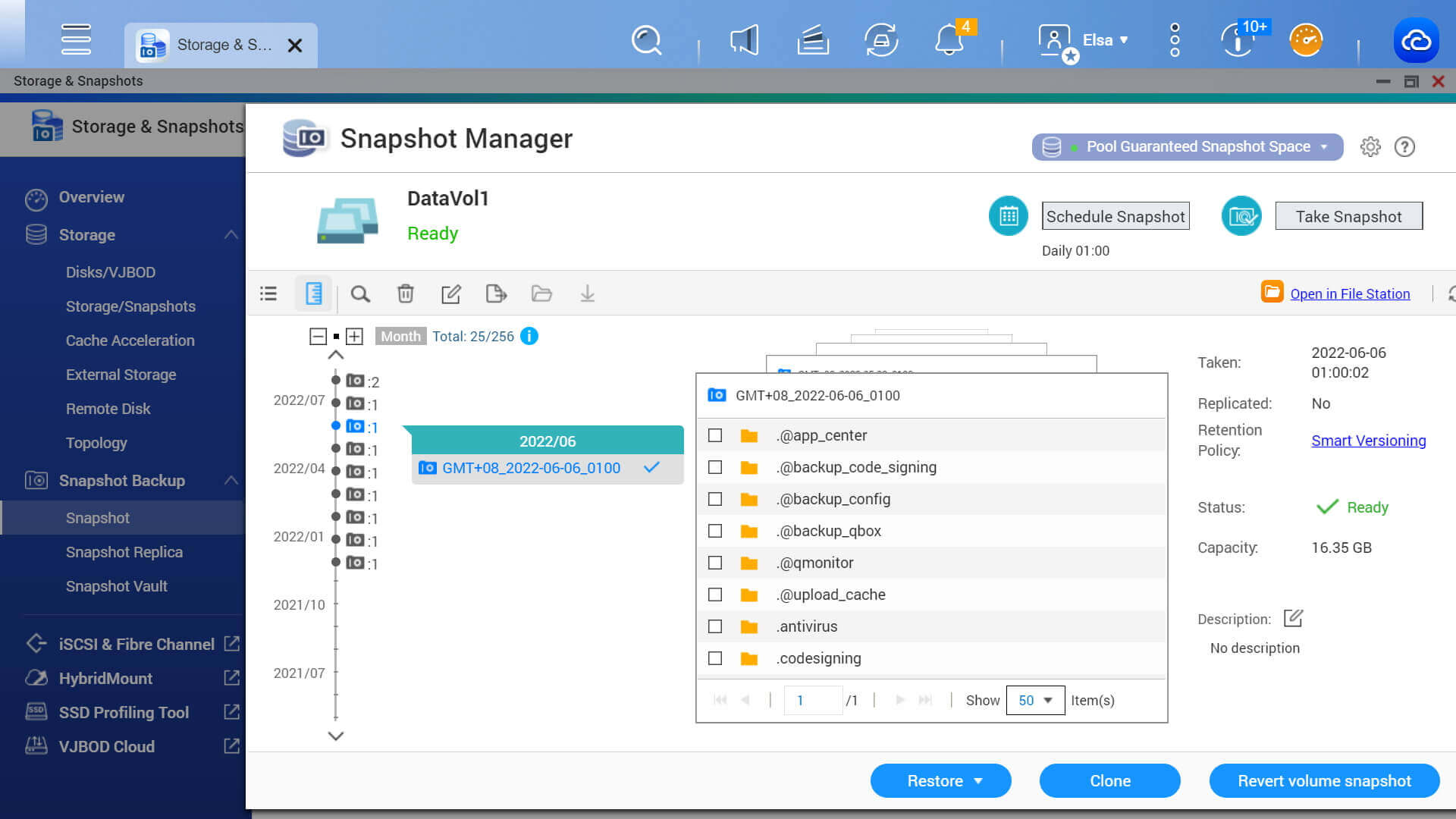

Volume and LUN snapshots

Snapshots record the complete status of your NAS system and data. Certain data and files can be reverted when needed. It’s the best way to recover your files from ransomware.





snapshots protection

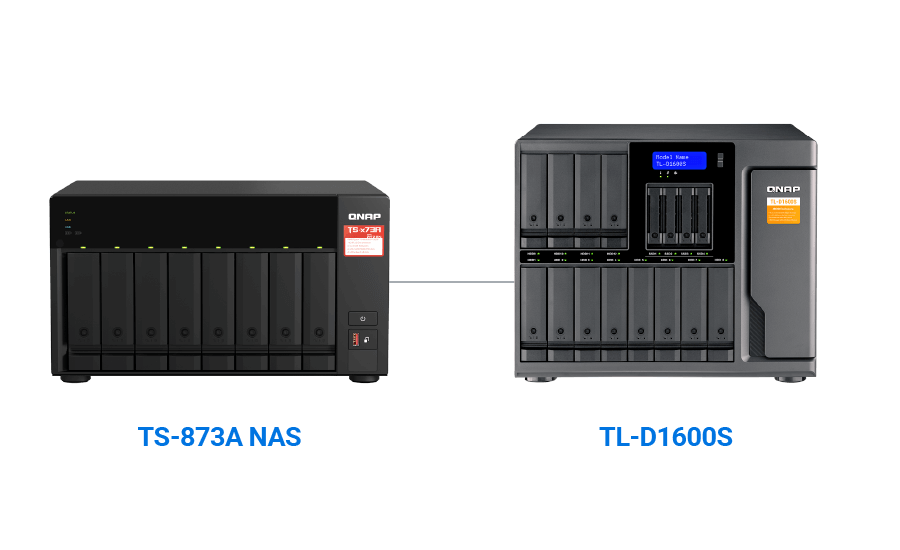

Flexibly expand storage space

The TS-873A supports a storage capacity of up to 154 TB by installing eight 3.5-inch 22 TB hard drives in RAID 5. By connecting to QNAP storage expansion units, you can add additional storage space to meet growing storage requirements.





tl d1600s ts 873a

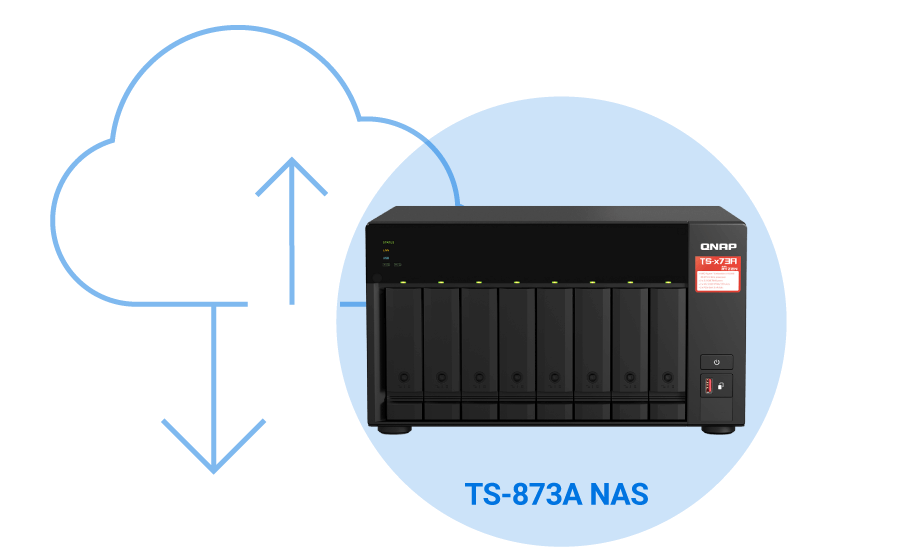

Mount cloud storage

HybridMount allows you to mount cloud storage and file servers on your NAS and centrally manage file access. Local caching for cloud data can be enabled to provide near-LAN access speeds.



hybridmount ts 873a





Diverse backups



Back up devices

Easily back up from PC/Mac or File servers supporting Rsync, FTP and CIFS to NAS. Then use Hybrid Backup Sync to back up data to another remote NAS or cloud based on the 3-2-1 backup rule.



back up multiple devices





Back up services

Back up diverse services to NAS, including VMware® and Hyper-V™ VMsGoogle™ Workspace and Microsoft 365® business account dataWordPress andGoogle Photos.





back up multiple services





Back up NAS data to the Cloud

Hybrid Backup Sync supports mainstream public cloud services for backing up or syncing data from NAS to Cloud.







back up multiple cloud service







Boost production efficiency

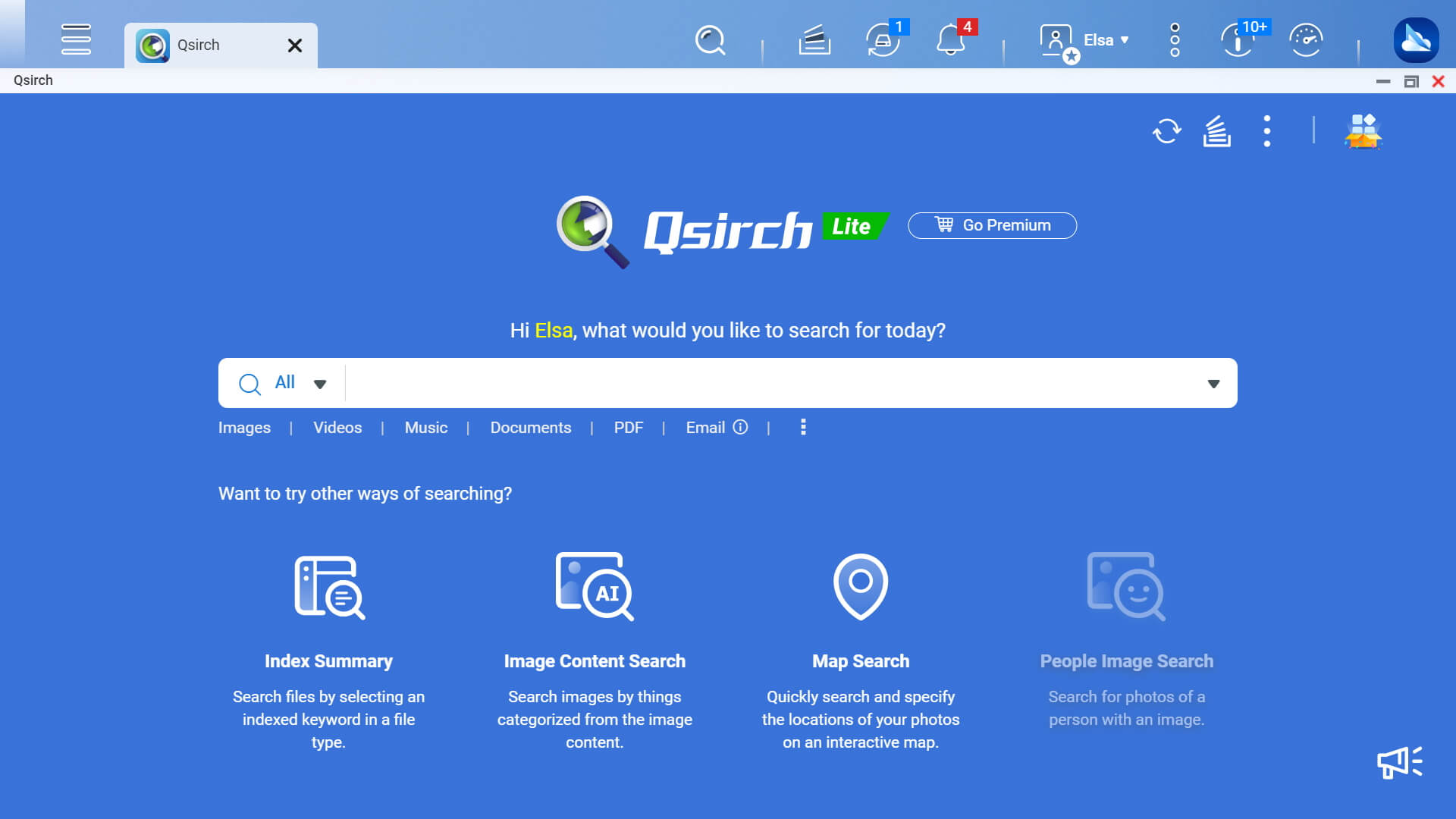

Search NAS files quickly

Powerful Qsirch full-text search engine allows you to quickly find documents, media files, and emails using keywords, colors, or faces. AI OCR image recognition technology recognizes and captures text inside images.



business file management img 03

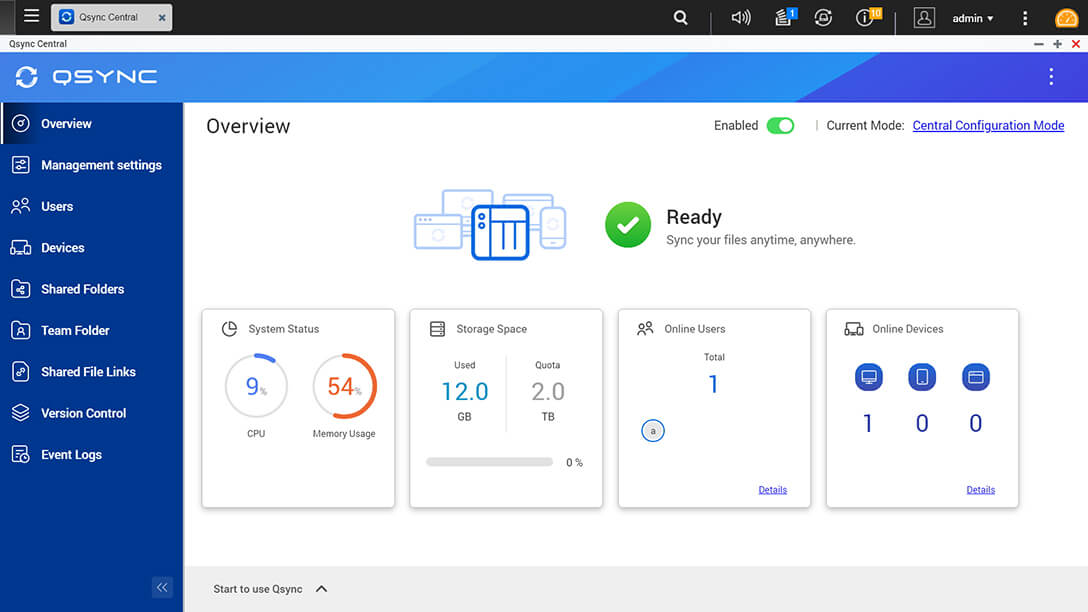

Auto-sync files

Qsync allows you to sync files between NAS and multiple computers or mobile devices via one-way or two-way sync.





business file management img 02

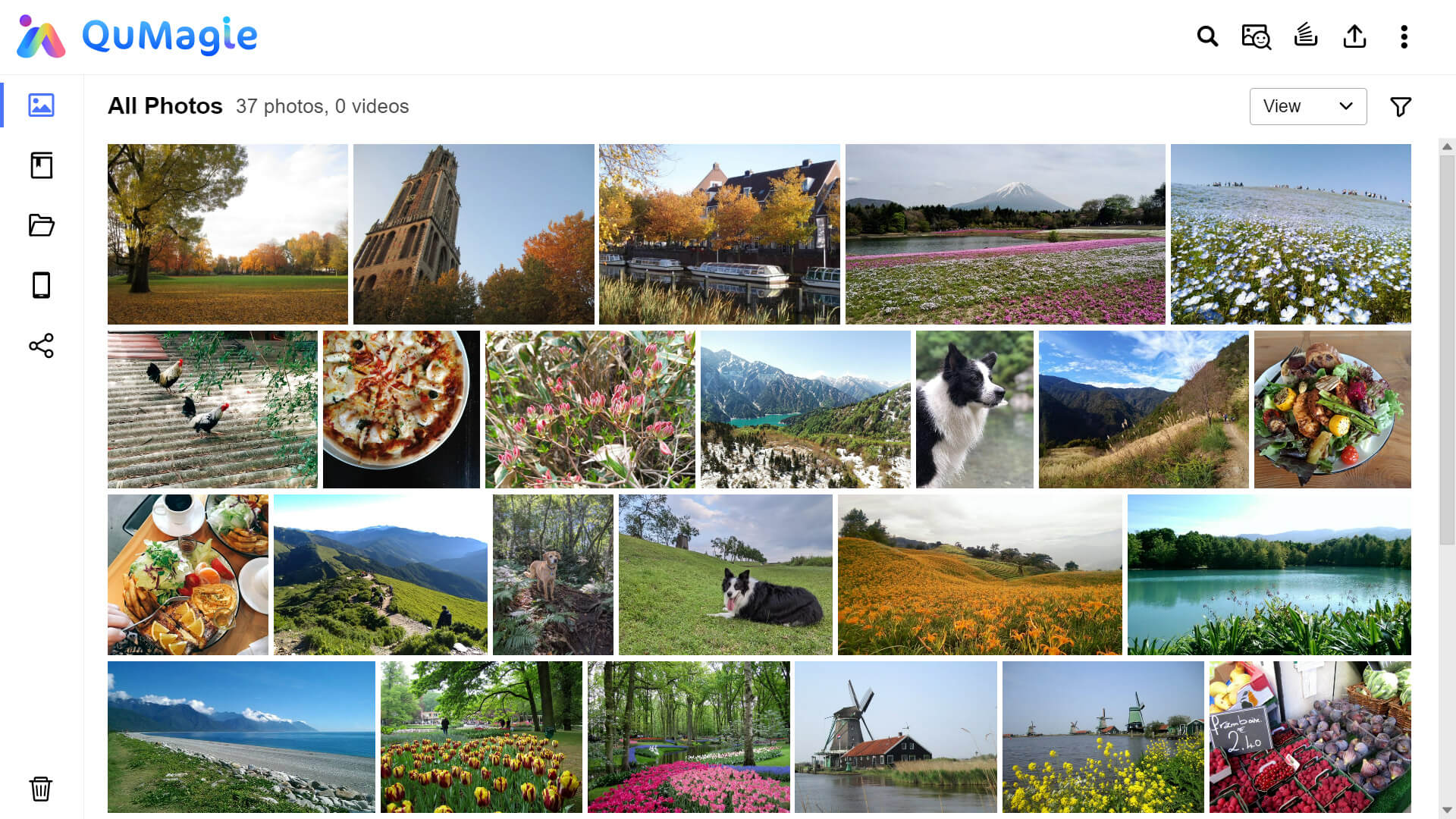

AI photo management

Large-capacity NAS leverages the powerful AI photo management app QuMagie and creates smart photo albums based on people, objects, locations, and events, making photos easy to find and share.





business qumagie img 05

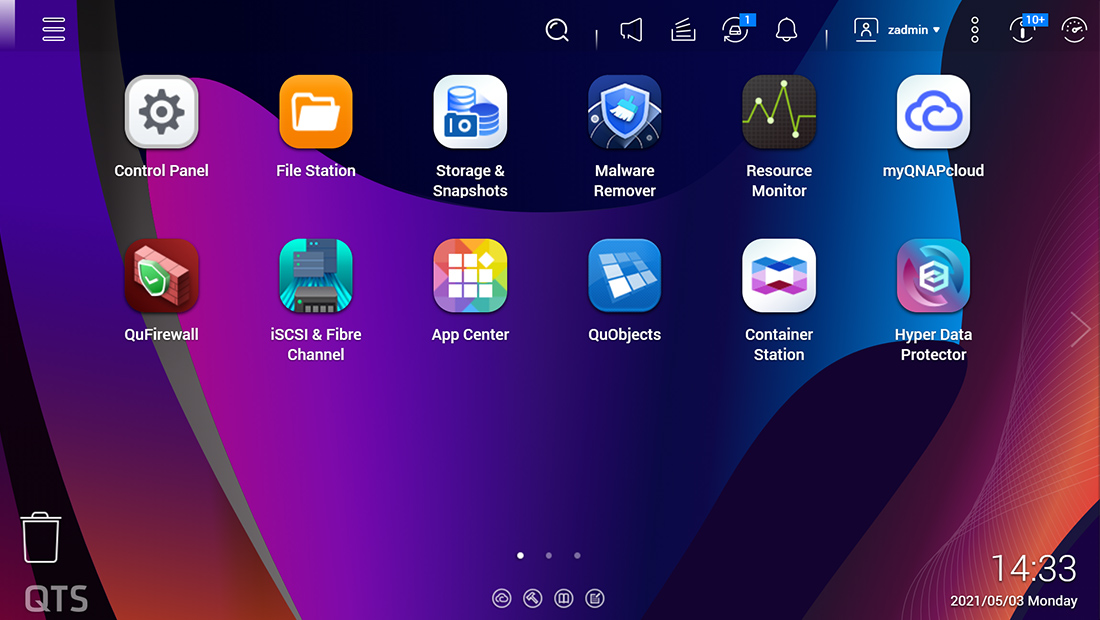

QTS 5 empowers VM, surveillance and cybersecurity deployment

The QTS 5 operating system provides a next-generation data storage usage experience with optimized user interface.





Run VMs and containers

By running multiple virtual machines and containers on the TS-873A, you can deploy multi-tenant environments and applications to increase management efficiency and reduce hardware costs.





Predict drive life with AI

QNAP’s AI-based drive health analysis technology, and automatic RAID disk replacement with spares, ensures a reliable storage environment.





All-in-one surveillance

QNAP’s integrated surveillance NAS solution offers a subscription licensing solution or perpetual licensing solution for flexible deployment based on your needs.





nhanced data security

QVPN Service enables secure virtual private network (VPN) connections between NAS and devices. Snapshots, QuFirewall and Malware Remover ensure optimal NAS protection against threats like malware and hackers.





ui 0





QSW-1105-5T
Affordable 5-port 2.5G switch

Enjoy 2.5x high-speed transmission by connecting more 2.5G devices, such as, NAS, Wi-Fi 6 Router/AP, PC/laptop, etc.





Five 2.5G NBASE-T ports for unleashing LAN/WAN 2.5Gbps potential



Supports auto-negotiation, backward compatible with 1GbE devices



Use existing Cat 5e cables



Hassle free plug and play



Fanless design with ventilated construction for near-silent operation



Automatic loop detection and blocking to ensure continuous network operation

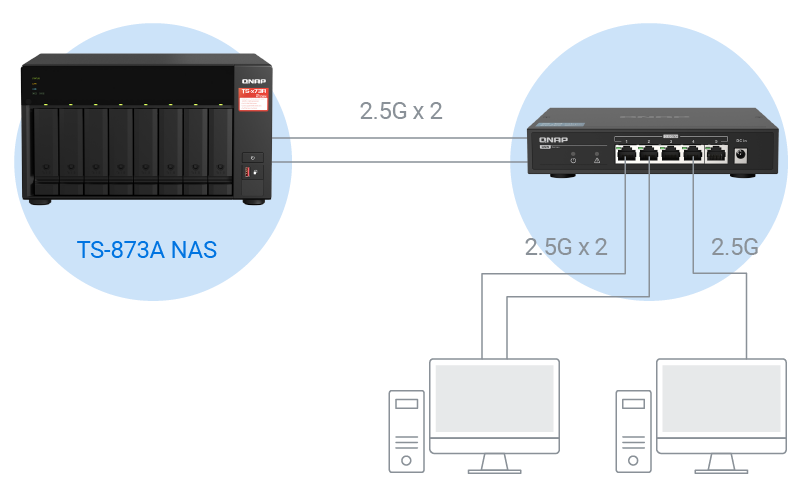

Enjoy 5Gbps speeds without an extra network card

Enable SMB Multichannel on TS-873A NAS to combine two 2.5GbE ports for up to 5Gbps transmission speed. This increased bandwidth greatly accelerates large file transfer/backup and video editing applications.



smb multichannel ts 873a





Deploy 2.5GbE network environment to boost application efficiency





Faster Backup and Restore

Increased transfer speeds help save time when backing up files to NAS, or when backing up using HBS (Hybrid Backup Sync).





f09 01







High-quality Video Streaming

Higher bandwidth improves the playback quality of 4K/8K videos.



f09 02







Gaming Storage

Mount an iSCSI LUN from a 2.5GbE NAS to your computer to store your vast game collection. Gaming x 2.5GbE NAS Solution



f09 03





Smooth Video Calls

In the era of remote working and classes, a faster network provides high-quality live streams for video calls and online courses.





f09 04








Operating System

QTS 5.2.3

Supported Client Operating Systems
  1. Apple Mac OS 10.10 or later
  2. Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
  3. IBM AIX 7, Solaris 10 or later UNIX
  4. Microsoft Windows 7, 8, 10 and 11
  5. Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019 and 2022
Supported Browsers
  1. Apple Safari (latest version)
  2. Google Chrome (latest version)
  3. Microsoft Edge (latest version)
  4. Mozilla Firefox (latest version)
Supported Languages

Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, and Turkish

Storage Pool

SED Storage Pool

Maximum Pool size

308 TB

Maximum number of storage pool

128

Volume Type

Thick, Thin, Static

Maximum volume size

250 TB

Note: At least 4 GB RAM is required.

Maximum number of volume

128

Maximum shared folder size

250 TB

Maximum number of shared folder

512

JBOD Expansion

VJBOD / VJBOD Cloud

iSCSI Service

Fibre Channel Service

LUN Type

Thick, Thin

File-based iSCSI LUN

Block-based iSCSI LUN

Maximum LUN size

250 TB

Note: At least 4 GB RAM is required.

Maximum number of targets LUN

128

LUN feature
  1. LUN Mapping (LUN can be moved between iSCSI and FC)
  2. LUN Masking
  3. WWPN Aliases Import/Export
  4. FC Port Group
  5. FC Port Binding
  6. Multipath IO (MPIO)
  7. Online LUN capacity expansion
  8. LUN snapshot
  9. LUN snapshot replication and clone
Auto Tiering

Requires minimum 2GB memory.

RAID Type
  1. 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
  2. 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
  3. 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
  4. 2-bay: JBOD, Single, RAID 0, 1
RAID Group

To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16 (applicable to RAID 5, RAID 6, RAID TP, and subgroups of RAID 50 and RAID 60). Nevertheless, users can combine multiple RAID groups into a large storage pool that contains more than 16 drives, using RAID 50, RAID 60, or RAID 10 as the RAID configuration. This enhancement will only be applied to new RAID groups. All existing RAID groups and storage systems will not be affected.

RAID Level Migration

RAID Expansion (by adding Disk)

RAID Expansion (by replacing bigger Disks)

Storage Pool Expansion (by adding RAID Group)

RAID Hot Spare

Global, Local

RAID Sync/Rebuild/Scrubbing

Internal drive

EXT4

External drive

EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)

Note: To use exFat in certain models you must purchase an exFAT driver license from License Center.

Disk, Enclosure Locate

Disk S.M.A.R.T. Scan

Disk S.M.A.R.T. Data Migration

Ironwolf Health Management

Secure Erase

SSD Trim

SSD Life Estimation

Disk Roaming

Disk Standby

Volume Snapshot

LUN Snapshot

Maximum Snapshot (Per System)

Check maximum number of snapshots of your NAS

Maximum Snapshot (Per Volume / LUN)

Check maximum number of snapshots of your NAS

Minimum Snapshot Interval

5 minutes

Snapshot Retention Policy

Self-serve Snapshot Recovery

Application Consisted Snapshot

Snapshot Full Clone

Snapshot Replica / Vault

SSD read-only Cache

SSD read-write cache

SSD write-only cache

SSD Cache Maximum Size

Check your QNAP NAS cache capacity and RAM requirements

SSD Cache RAID

0, 1, 5, 6, 10

SSD profiling tool

External Device Management

Mount Smart Phone (MTP)

External RAID Device (QNAP so on) Management (External Device Mode)

External RAID Device (QNAP so on) Management (NAS Mode)

File Server
  1. File sharing across Windows, Mac, and Linux/UNIX
  2. Microsoft networking (CIFS/SMB)
  3. Apple networking (AFP)
  4. NFS version 3/4 services
FTP Server
  1. QuFTP
  2. FTP, SFTP and TFTP protocols
  3. FTP over SSL/TLS (explicit FTPS)
  4. FXP support
Maximum FTP connection

1024

File Station (Web)

Object Storage

Local user account

4,096

Local group account

512

Domain user/group account

200,000

Domain Security

Domain Controller

Shared folder permission

Advanced folder permission

, (AFP, CIFS/SMB, FTP, and File Station)

Windows ACL

, (CIFS/SMB)

User quota

Group quota

Folder quota

, (Snapshot shared folder)

Home folder

Resource Monitor

SNMP

V2, V3

Network recycle bin
  1. Recover files deleted using AFP, CIFS/SMB, and File Station
  2. Automatic cleanup and file type filter
System Log & Notification Center

Log recording: 3,000 event per second

Smart Fan

Schedule on/off

Internet protocol

IPv4, IPv6

Virtual Switch

Port trunking

, (7 modes)

VLAN

DHCP Server

DDNS (Dynamic Domain Name Service)

Network access protection with auto-blocking

SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP

Security Counselor

Malware Remover

AES 256-bit Volume Encryption validated by FIPS 140-2 CAVP

2-step verification

Allow/Deny List

Access Protection

Service binding

Firewall

VMware vSphere Ready

Windows Server certifcated

Citrix Ready

vSphere Web Client Plug-in

VMware vSphere VAAI for iSCSI

VMware vSphere VAAI for NAS

Windows ODX

Windows/VMware Snapshot Agent

HTTP/HTTPS Connections

TLS 1.0/1.1/1.2/1.3

Supports WebDAV Connection

Supports Virtual Hosts

32

Qsync

Note: At least 1 GB RAM is required.

[Qsync] Management Mode

User customization, Central

[Qsync] Qsync client supported platforms

Windows, macOS, Ubuntu, Android, and iOS

[Qsync] Maximum number of version control

64

HybridMount

Note: At least 1 GB RAM is required.

[HybridMount] File Cloud Gateway

Concurrent Connections = 20 Upload & 20 Download

[HybridMount] Network Drive Mount

[HybridMount] Free cloud gateway sessions

2

HBS (Hybrid Backup Sync)

Note: At least 1 GB RAM is required.

[HBS (Hybrid Backup Sync)] NAS to NAS backup

[HBS (Hybrid Backup Sync)] Cloud Backup

[HBS (Hybrid Backup Sync)] Cloud Sync

[HBS (Hybrid Backup Sync)] 2-way and Active Sync

[HBS (Hybrid Backup Sync)] Backup Deduplication

[HBS (Hybrid Backup Sync)] Apple Time Machine Backup

[HBS (Hybrid Backup Sync)] External drive backup

[HBS (Hybrid Backup Sync)] Maximum number of backup job

400

Hyper Data Protector

Boxafe

Note: At least 4 GB RAM is required.

[Boxafe] Office 365 Backup

[Boxafe] Google Workspace Backup

[Boxafe] Full-text search

Qsirch

Note: This feature is supported by all QNAP NAS devices with at least 2 GB of memory

[Qsirch] Previews

Photos, music, videos, PDFs, Gmail, and others

[Qsirch] Integrate Mac Finder

[Qsirch] Advanced picture search

[Qsirch] Search filters

QuMagie

Note: At least 1 GB RAM is required.

[QuMagie] Browse photos

[QuMagie] Virtual and smart albums

[QuMagie] AI-assisted photo management

People, things, places, and others

Antivirus (free)

McAfee (License)

QVPN Service

Note: At least 1 GB RAM is required.

[QVPN Service] Remote Access

PPTP, L2TP/IPSec, OpenVPN, WireGuard, QBelt (QNAP proprietary)

[QVPN Service] Supportedd utility and mobile app

Windows, macOS, iOS, and Android

[QVPN Service] Supported maximum clients

100

LDAP Server

RADIUS

SQL server

License Center

Multimedia Console

Photo Station

Music Station

Video Station

Download Station

Notes Station

Qfiling

Media Streaming add-on

QmailAgent

QuWAN

DA Driver Analyzer

Q'center

Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V).

Q'center Server

Q'center Agent

Connect to Q'center

Virtualization Station

Note: At least 4 GB RAM is required.

[Virtualization Station] Supports Virtual machine instances

Windows, Linux, Unix, and Android

[Virtualization Station] VM importing, exporting, cloning, snapshot capturing, backup, and restoration

All function is Fine.

[Virtualization Station] Virtual switches

Can create a virtual switch

[Virtualization Station] GPU pass-through

Not support GPU

[Virtualization Station] Suggested number of virtual machine instances

8

The actual number of virtual machine instances may vary by the memory installed on NAS (e.g. 1 VM= 1 thread for 1 vCPU and 1GB memory). Please expend memory if needed.

Container Station

Note: At least 1 GB RAM is required.

[Container Station] Supported type

LXC/LXD and Docker

Note: LXD has been supported after Container Station 2.4

[Container Station] Docker Hub Registry

[Container Station] Container importing and exporting

[Container Station] Console mode

Linux Station

Notification: At least 4 GB RAM is required.

[Linux Station] Supports Ubuntu versions

18.04, and 20.04

Linux Station Center

QVR Pro

Note: At least 4 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.

[QVR Pro] Recording Technique

Index database based

[QVR Pro] License Type

Perpetual

[QVR Pro] User-defined trigger events

[QVR Pro] Metadata

[QVR Pro] QVR Pro Client (Desktop)

Windows, macOS, and QNAP HybridDesk Station

[QVR Pro] QVR Pro Client (Mobile)

Android and iOS

[QVR Pro] Recording camera streams

H.264

[QVR Pro] Free built-in camera channels

8

QVR Elite

Note: At least 1 GB RAM is required. The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.

[QVR Elite] Recording Technique

Standard MP4 file based

[QVR Elite] License Type

Subscription-based

[QVR Elite] User-defined trigger events

[QVR Elite] QVR Pro Client (Desktop)

Windows, macOS, and QNAP HybridDesk Station

[QVR Elite] QVR Pro Client (Mobile)

Android and iOS

[QVR Elite] Recording camera streams

H.264

[QVR Elite] Free built-in camera channels

2

QVR Pro Client

[QVR Pro Client] Dynamic View Layout

[QVR Pro Client] Windows

[QVR Pro Client] Mac

[QVR Pro Client] HybridDesktop

[QVR Pro Client] iOS

[QVR Pro Client] Android

QVR Center

Note: At least 4 GB RAM is required.

[QVR Center] Log management

[QVR Center] Central monitoring across multiple servers

QVR Guard

Note: At least 4 GB RAM is required.

[QVR Guard] Failover design

[QVR Guard] Viewing task details

[QVR Guard] Automatic switch between Standby and Takeover modes

QVR Face

The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/solution/qvr-face/en-us/

QVR DoorAccess

CPU AMD Ryzen™ Embedded V1500B 4-core/8-thread 2.2 GHz processor
CPU Architecture 64-bit x86
Graphic Processors Optional via a PCIe adapter
Floating Point Unit
Encryption Engine  ✔️ (AES-NI)
Hardware-accelerated Transcoding Optional via a PCIe adapter
System Memory 8 GB SODIMM DDR4 (1 x 8 GB)
Maximum Memory 64 GB (2 x 32 GB)
Memory Slot 2 x SODIMM DDR4
Support ECC memory
For dual-DIMM configurations, you must use a pair of identical DDR4 modules.
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable
The following are not hot-swappable: M.2 SSDs, SSD cache drives, SSDs using PCIe expansion slots.
M.2 Slot 2 x M.2 2280 PCIe Gen3 x1 slots
The M.2 SSD is not included as standard.
M.2 SSD operations can easily generate excessive heat. It is recommended to install a heatsink (from QNAP or a third-party provider) on the M.2 SSD.
SSD Cache Acceleration Support
GPU pass-through
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M)
5 Gigabit Ethernet Port (5G/2.5G/1G/100M) Optional via a PCIe adapter
10 Gigabit Ethernet Port Optional via a PCIe adapter
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 2
Slot 1: PCIe Gen 3 x4
Slot 2: PCIe Gen 3 x4
Card dimensions for PCIe slot 1~Slot 2:200 x 131.15 x 18.76 mm / 7.87 x 5.16 x 0.74 inches.
Wider cards can be installed if the next PCIe slot will not be used.
USB 3.2 Gen 2 (10Gbps) Port 3 x Type-A USB 3.2 Gen 2 10Gbps
1 x Type-C USB 3.2 Gen 1 5Gbps
HDMI™ Output Optional via a PCIe adapter
Form Factor Tower
LED Indicators Status/Power, USB, LAN, Drive 1-8, M.2 SSD 1-2
Buttons Power, Reset, USB Auto Copy
Dimensions (HxWxD) 180.2 × 329.3 × 279.6 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
Weight (Net) 7.4 kg
Weight (Gross) 8.3 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 250W, 100-240V AC, 50-60Hz, 3.5A
Power Consumption: Disk Standby Mode 25.668
Power Consumption: Operating Mode, Typical 54.067 W
Tested with drives fully populated.
Fan System fan: 2 x 120mm
CPU fan: 1 x 60mm
System Warning Buzzer
Kensington Security Slot
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 2000
Management Type Unmanaged
Number of Ports 5
2.5GbE (RJ45) 5
Power Supply Description Adapter
Max. Power Consumption 12 W
Input Power Type DC
Input Voltage Range 12V
MAC Address Table 16K
Total Non-Blocking Throughput 12.5Gbps
Switching Capacity 25Gbps
Fan Fanless
Fanless
Supported Standards IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5GBase-T
IEEE 802.3x Full-Duplex Flow Control
Form Factor Desktop
LED Indicators Per Port: Speed/Link/Activity
Loop LED: Loop
Per System: Power/Status
Dimensions (HxWxD) 34 x 180 x 145 mm
Weight (Net) 0.577 kg
Operating Temperature 0˚C to 40°C (32°F to 104°F)
Relative Humidity 10% to 90% (non-condensing)
Certifications FCC, CE, BSMI, VCCI, LVD,KCC,ASNZ
Electromagnetic Compliance Class B
Jumbo Frames 9K
There are no reviews for this product.
Write a review
Verification code *
